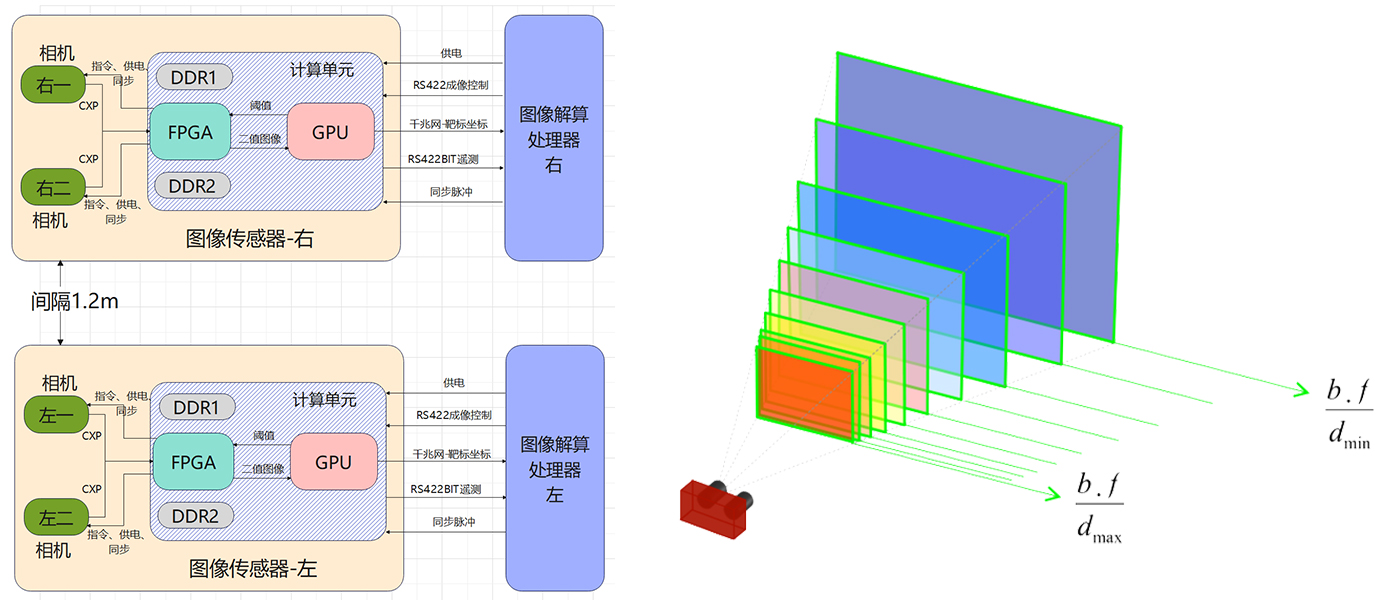

The Aerial binocular camera simulates the binocular parallax with dual lenses. lt is characterized by generating high- precision 3D point clouds without ground control points, flexibly adapting to complex terrains, having low cost and real-time performance and can output DSM and DOM. It is applied in multiple fields such as engineering surveying, cultural relic protection and emergency.
Product Parameters
|
Product Parameters |
|
|
Imaging Method |
Dual-Face Array |
|
Spectral Band |
RGB, 400~700 nm |
|
Field of View |
70° Circular Field of View (covers pitch ±30°, roll ±25°) |
|
Quantization Bits |
8 bit |
|
Baseline Distance |
1.2 m |
|
GSD |
≥ 1600×1200 |
|
Operating Temperature |
-55℃ ~ 71℃ |
|
Defrost Function |
Yes |
|
Supply Voltage |
10~13V |
|
Communication Interface |
RS422 |
|
Data Transmission Interface |
Ethernet Port |
|
Size |
300×84×258 mm |
|
Weight |
≤ 5kg |
* Specific specifications can be customized
