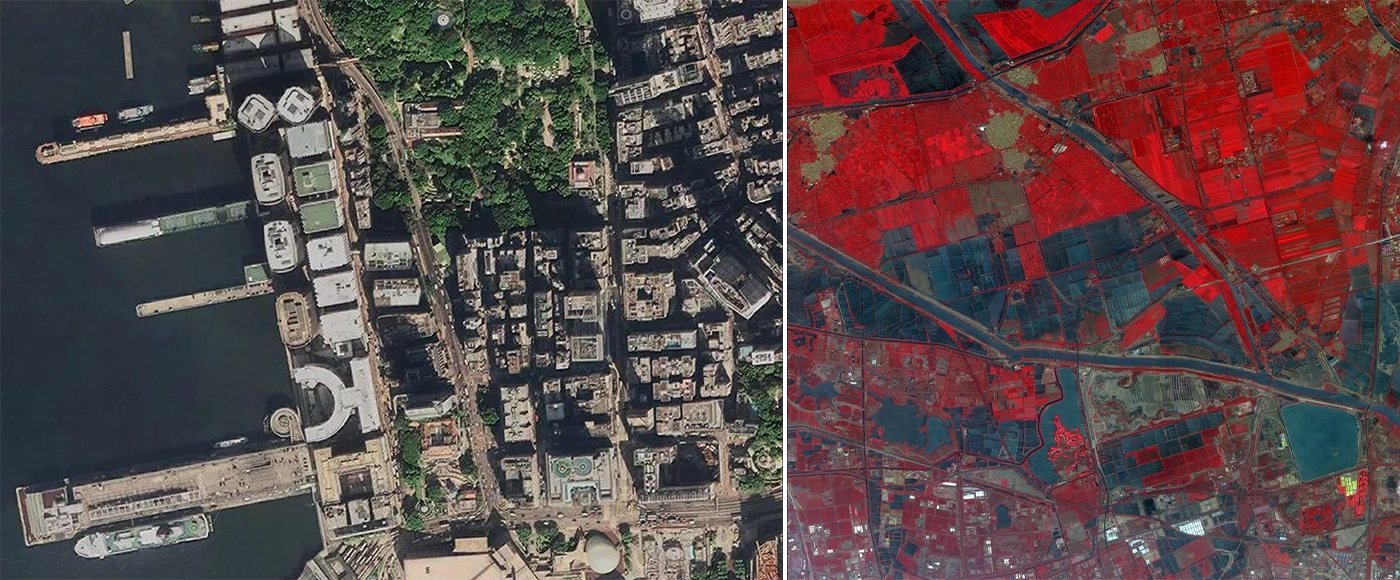

It is the prime selection for high-GSD all-time imaging. Visible light is employed to identify the texture and geometric features of ground objects, and infrared is utilized to analyze their temperature characteristics, thereby establishing a complete data chain that encompasses details-regions, morphology-function, and day-night scenarios. Typical applications span various fields such as environmental protection law enforcement, forest fire prevention, track identification and disaster monitoring.
Product Parameters
|
Product Parameters |
||
|
GSD |
Infrared |
5m@500km |
|
Visible |
Panchromatic: 0.5m @ 500 km Multispectral: 2m @ 500 km |
|
|
Spectral Band |
Infrared |
8~12 μm or 3~5 μm |
|
Visible |
PAN：450 ~ 800 nm B1：450 ~ 520 nm B2 ：520 ~ 590 nm B3 ：630 ~ 695nm B4：770 ~ 890 nm or 1+8 spectral bands |
|
|
Swath Width |
≥ 12 km@500Km |
|
|
Static Transfer Function |
Infrared |
≥0.20 |
|
Visible |
Panchromatic ≥ 0.15 Multispectral ≥ 0.25 |
|
|
Signal-to-Noise Ratio |
Typically 30 dB |
|
|
Data Rate |
Visible: 5.28 Gbps Infrared: 65 Mbps |
|
|
Supply Voltage |
26~45 V |
|
|
Communication Interface |
CAN2.0 |
|
|
Data Transmission Interface |
CXP / Tlk2711 |
|
|
Size |
1280×850×1800 mm |
|
|
Weight |
≤ 150 kg |
|
|
Power Consumption |
Short-term ≤ 180 W Long-term ≤ 20 W |
|
|
Service Life |
3~5 years |
|
* Specific specifications can be customized
