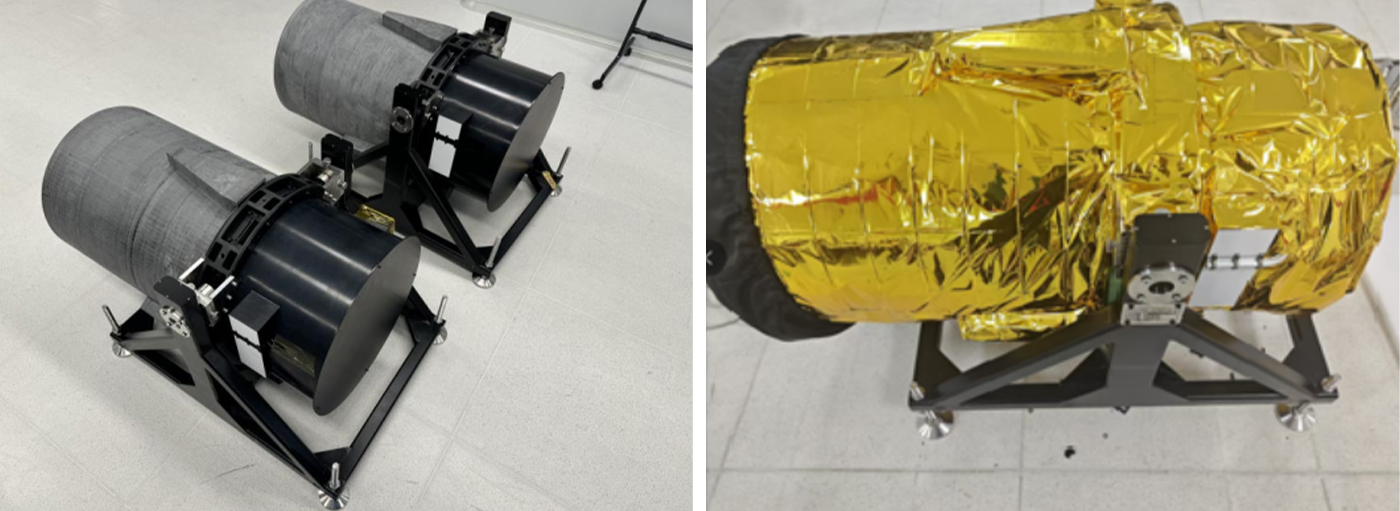

The first choice for 100kg class, which can easily switch between push-broom imaging and video imaging. lt‘s got high GSD, light-weight and small, and it‘s flexible to use. Plus, it can be set up to have functions like compression storage and target recognition.
Sub-meter-level video images enable the identification and monitoring of moving targets. Color static images are applicable to fine -grained urban management, visual monitoring of the ecological environment, disaster emergency response and assessment, land use and planning, etc.
Product Parameters
|
Product Parameters |
|
|
Spectral Bands (Customizable: 1+4, 1+8, or 1+16 bands) |
Panchromatic: 400 ~ 700 nm Or 3 Multispectral Bands: 400 ~ 520 nm 480 ~ 600 nm 590 ~ 700 nm |
|
GSD |
0.75m @ 500km orbit |
|
Swath Width |
Push-broom: 6km @ 500km orbit Video: 6km×4.5km |
|
Imaging Mode |
Push-broom & Video Imaging |
|
Static Modulation Transfer Function (MTF) |
≥ 0.12 |
|
Signal-to-Noise Ratio (SNR) |
Typical: 35 dB |
|
Data Rate |
Video: 11.5 Gbps Push-broom: 760 Mbps |
|
Supply Voltage |
10 ~ 13V |
|
Communication Interface |
CAN2.0 |
|
Data Transmission Interface |
CXP/CameraLink/Ethernet Port |
|
Size |
640×600×1180 mm |
|
Weight |
≤ 30 Kg |
|
Power Consumption |
Short-term: ≤ 30 W Long-term: ≤ 50 W |
|
Service Life |
5 years (reliability: 0.92) |
* Specific specifications can be customized
