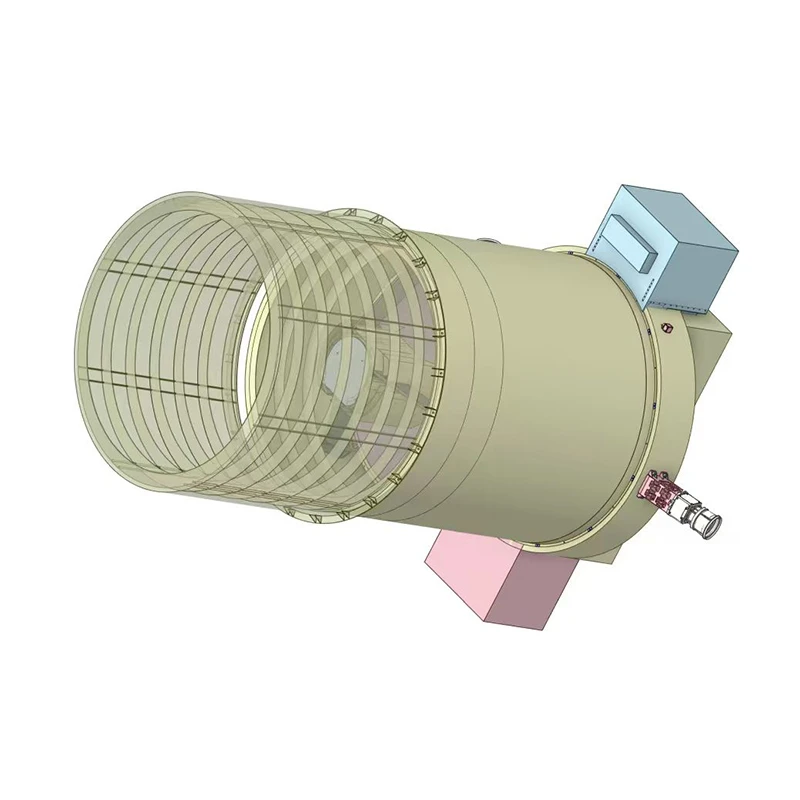

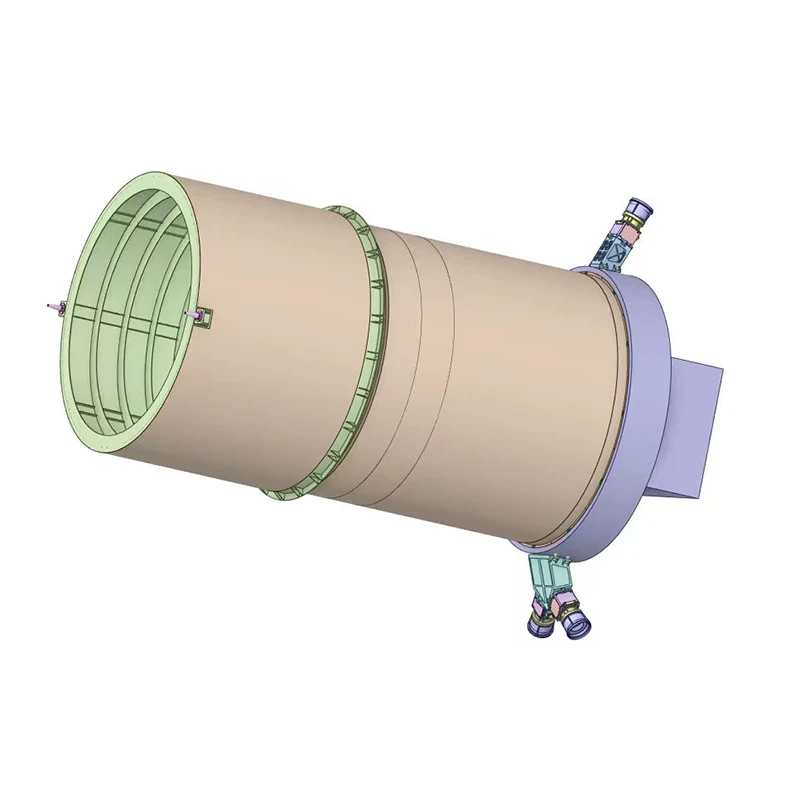

The first choice for 200 kg class platforms. lt is characterized by high GSD, high integration, and a compact and light weight design. Moreover, it has expandable compression storage and Al processing functions.
The data has a high added value and finds extensive applications. It is commonly utilized in fields such as national land resources surveys. agricultural yield estimation, and emergency disaster mitigation.
Product Parameters
|
Product Parameters |
|
|
Spectral Bands (Customizable: 1+8, 1+16 bands) |
1 Panchromatic + 4 Multispectral Bands: PAN: 450 ~ 800nm B1: 450 ~ 520nm B2: 520 ~ 590nm B3: 630 ~ 695nm B4: 770 ~ 890nm |
|
GSD |
Panchromatic: 0.5m @ 500km orbit Multispectral: 2m @ 500km orbit |
|
Swath Width |
≥ 15km @ 500km orbit |
|
Imaging Mode |
TDI Push-Broom |
|
Static Modulation Transfer Function (MTF) |
Panchromatic: ≥ 0.15 Multispectral: ≥ 0.25 |
|
Signal-to-Noise Ratio (SNR) |
Typical: 35 dB |
|
Data Rate |
7.04 Gbps |
|
Supply Voltage |
26 ~ 45V |
|
Communication Interface |
CAN2.0 |
|
Data Transmission Interface |
CXP / Tlk2711 |
|
Size |
1150×800×1600 mm |
|
Weight |
≤ 65 Kg |
|
Power Consumption |
Short-term: ≤ 130 W Long-term: ≤ 120 W |
|
Service Life |
5 years (reliability: 0.94) |
* Specific specifications can be customized
